氮化硅TEM窗口在嚴酷實驗室條件下表現良好，硅材質的框架100µm厚，可放置標準的銅網支架和大多數雙傾斜樣品臺，氮化硅窗口裝在透明的凝膠盒中。
l 等離子可清洗-可以耐受強力等離子清洗，除去有機污染層
l 場到場的均勻性-整個薄膜厚度的變化小于0.5 nm
l 可容忍1000°C以上的溫度-支持在高溫下觀察動態過程中使用
l 經得起嚴酷的條件-提供理想的成像分辨率，化學穩定性和機械強度
l 氮化硅采用LPCVD法制造，具有平坦，絕緣和疏水表面
這里特別提一下光電關聯顯微鏡（CLEM）氮化硅支持膜（76042-51），3mm直徑大小的外框，硅制造。內窗口大小1mm*1mm，氮化硅支撐膜50nm厚度，以便于光電關聯顯微鏡實驗。
選擇參考
|

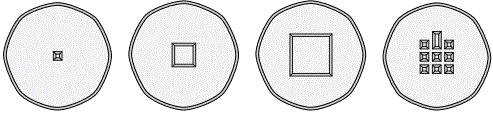

High Resolution Imaging: |
5nm |
76042-43, 1 square (25x25µm) 76042-44, 9 squares (50x50µm) 76042-45, 2 slots (50x1500µm)* |
|
Robust, Increased High Resolution: |
10nm |
76042-46, 9 squares (100x100µm) |
|
Everyday Imaging: |
20nm |
76042-49, 1 square (500x500µm)
|
|
Demanding Conditions: |
50nm |
76042-53, 1 square (100x100µm) 76042-52, 1 square (500x500µm) 76042-51, 1 square (1000x1000µm) 76042-50, 9 squares (100x100µm) |
|
Materials & Cryo-EM Suspension: |
Microporous |
76042-41, 1 square (500x500µm) 76042-40, 1 square (500x500µm) |
*Coated with 1 nm of ultrahigh purity carbon to minimize charging
產品選購：
|
貨號 |
產品描述 |
窗口尺寸 |
厚度 |
規格 |
|
76042-40 |
Silicon Nitride Microporous TEM Window Grid (2.0 µm pores with labeled grid)氮化硅薄膜窗口帶微孔 |
500µm sq. |
20nm |
10/盒 |
|
76042-41 |
Silicon Nitride Microporous TEM Window Grid (2.0 µm pores with labeled grid) |
500µm sq. |
50nm |
10/pk |
|
76042-42 |
Silicon Nitride Nanoporous TEM Window Grid |
500µm sq. |
20nm |
10/pk |
|
76042-43 |
Silicon Nitride TEM Window Grid |
25µm sq. |
5nm |
10/pk |
|
76042-44 |
Silicon Nitride TEM Window Grid |
(8) 50µm sq., (1) 50x100µm |
5nm |
10/pk |
|
76042-45 |
Silicon Nitride TEM Window Grid |
(2) 50x1500µm |
5nm |
10/pk |
|
76042-46 |
Silicon Nitride TEM Window Grid |
(8) 100 sq., (1) 100x350µm |
10nm |
10/pk |
|
76042-47 |
Silicon Nitride TEM Window Grid |
(8) 250 sq., (1) 250x500µm |
10nm |
10/pk |
|
76042-48 |
Silicon Nitride TEM Window Grid |
(8) 100 sq., (1) 100x350µm |
20nm |
10/pk |
|
76042-49 |
Silicon Nitride TEM Window Grid |
500µm sq. |
20nm |
10/pk |
|
76042-50 |
Silicon Nitride TEM Window Grid |
(9) 100µm sq. |
50nm |
10/pk |
|
76042-51 |
Silicon Nitride TEM Window Grid |
1000µm sq. |
50nm |
10/pk |
|
76042-52 |
Silicon Nitride TEM Window Grid |
500µm sq. |
50nm |
10/pk |
|
76042-53 |
Silicon Nitride TEM Window Grid |
100µm sq. |
50nm |
10/pk |
